Universal aluminum boxes for all areas in everyday life
Universal aluminum boxes for all areas in everyday life

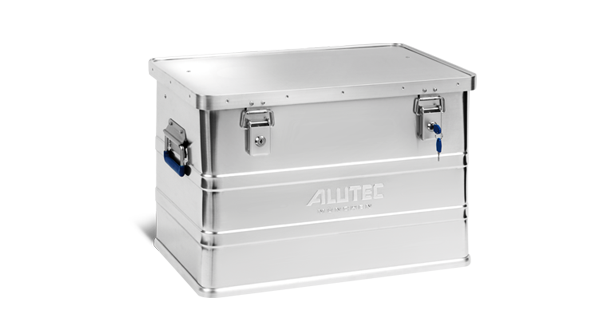

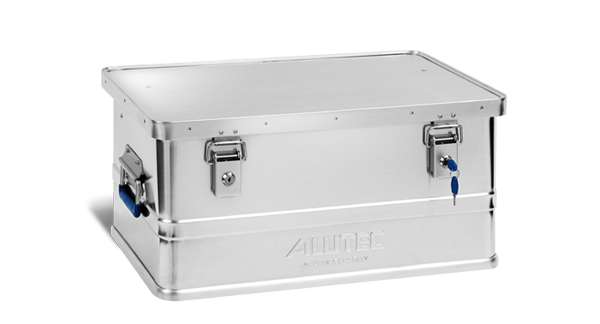

ALUTEC MÜNCHEN aluminium boxes of the CLASSIC series with 0.8 mm wall thickness and two security locks are ideal for the hobbyist or craftsman who needs to store items safely in the workshop or transport them conveniently at the work site. The highly practical sizes leave nothing to be desired.
Light, stable, corrosion, weathering and temperature resistant
made of 0.8 mm thick high-grade aluminium
Stable, wide-opening hinged cover with tethers
to relieve the hinges

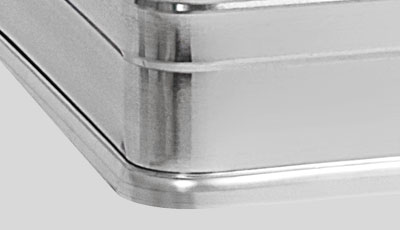

Reinforced by aluminium profiles
on box and lid

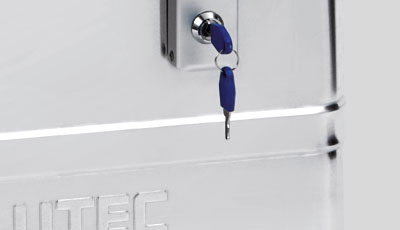

Shock-proof and dimensionally stable
due to embossed circumferential creasing

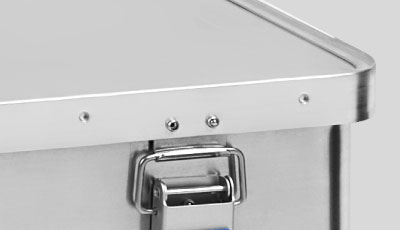

Stackable to save space
by projection on lid edge.

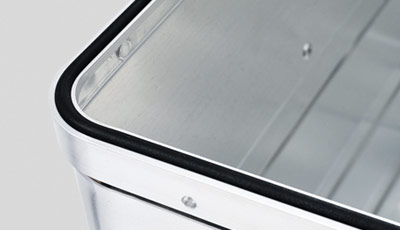

Dust and splash-water protection
by replaceable, durable rubber gaskets in the frame profile.

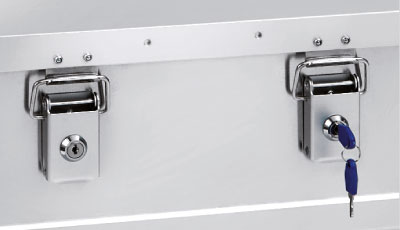

Robust, aluminium toggle fasteners
with hole for seals, padlocks or cylinder locks. Prepared for mounting cylinder locks (accessory).
Ergonomic, self-folding safety handles
with durable, non-slip plastic cover

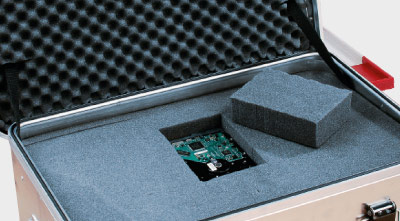

Foam block transport protection
Consist of cube foam plates, one base plate and a pimpled foam blank for the lid. Transport protection of sensitive and fragile goods.
Suitable for boxes with 30, 48, 68/73, 92/93 and 140/142 l volumes
Item no. 36010 for 30 litres
Item no. 36020 for 48 litres
Item no. 36030 for 68/73 litres
Item no. 36040 for 92/93 litres
Item no. 36050 for 140/142 litres

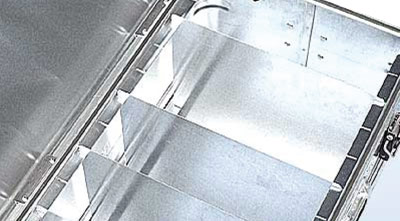

Partition set
Glue on guide rails and insert partitions – and you’re all organized.
This partition set consists of self-adhesive guide rails and 4 light metal partitions.
Suitable for boxes:
CLASSIC 48, 68, 93
COMFORT 48, 73, 92
INDUSTRY 48, 73, 92
Item no. 20000
Wheel attachment set
Easy installation kit with large rubber wheels for easy transportation.
For installation only two 8.5 mm diameter holes have to be drilled.
Only suitable for the Classic-, Comfort- and Industryseries
Item no. 20010
| Type | Item no. | Internal dimensions in mm L x W x H | External dimensions in mm L x W x H | Contents litres Ltr. | Weight kg | Handles | Reference Type | Reference Item no. |

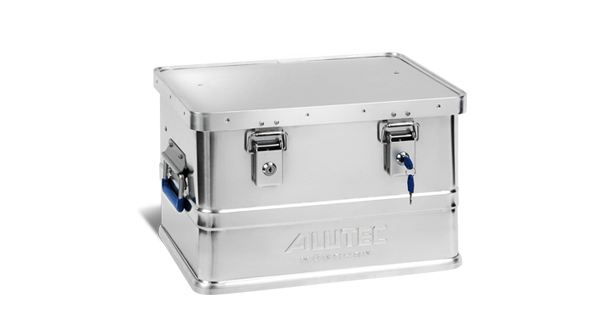

| CLASSIC 30 | 11030 | 405 x 300 x 250 | 430 x 335 x 270 | 30 | 2,55 | 2 | B 29 | 31029 |
| CLASSIC 48 | 11048 | 550 x 350 x 250 | 575 x 385 x 270 | 48 | 3,31 | 2 | B 47 | 31047 |
| CLASSIC 68 | 11068 | 550 x 350 x 355 | 575 x 385 x 375 | 68 | 3,74 | 2 | B 70 | 31070 |
| CLASSIC 93 | 11093 | 750 x 350 x 355 | 775 x 385 x 375 | 93 | 4,75 | 2 | B 90 | 31090 |

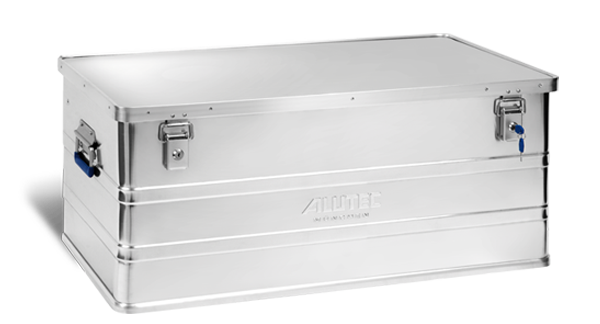

| CLASSIC 142 | 11142 | 870 x 460 x 355 | 895 x 495 x 375 | 142 | 5,86 | 2 | B 140 | 31140 |

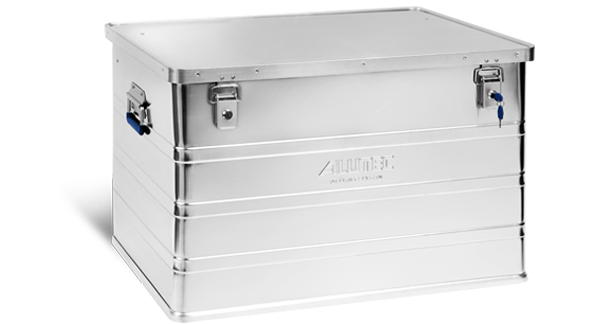

| CLASSIC 186 | 11186 | 760 x 530 x 462 | 785 x 565 x 482 | 186 | 6,30 | 2 | B 184 | 31184 |
Clearance dimensions approx. 20 mm less than interior dimensions. Subject to technical and visual changes.
