Universal aluminum boxes for all areas in everyday life
Universal aluminum boxes for all areas in everyday life
These extremely stable transport boxes of 3 mm thick alloyed aluminium corrugated sheet metal are particularly ideal, for example, as pickup truck boxes for craftsmen, building companies and garden or exhibition stand constructors – anywhere that large and bulky objects need to be transported and stowed safely.

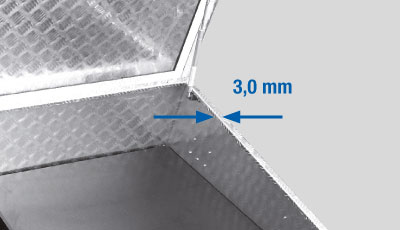

Made of alloyed, high strength, weatherproof 3 mm aluminium corrugated sheet metal
Seams fully welded all the way round and four sturdy feet with M10 internal thread for permanent fixture
Hooded lid to prevent the ingress of rain or splash water
Hinges, handles and closures made of stainless steel

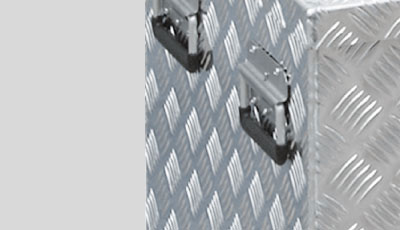

Self-folding, high load strength, plastic covered safety carrying handles
Sturdy eccentric closures with ring for padlocks
Extra strong lid with tethers to relieve the load on the hinges
(EXTREME 37, EXTREME 70, EXTREME 120, EXTREME 234)

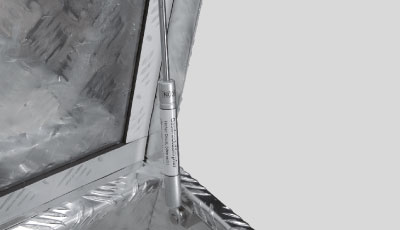

Gas-filled struts for easy and secure opening and closing of the lid
(EXTREME 250, EXTREME 312, EXTREME 375, EXTREME 470, EXTREME 883)
Durable rubber gaskets all the way round for effective exclusion of dust and splash-water

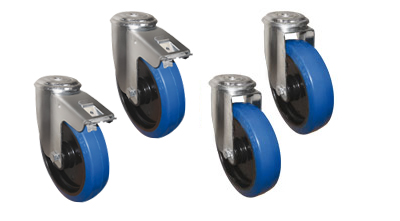

Wheel set for Extreme-series
4 castors Ø 100 mm with 2 brakes incl. fittings for fitting to the feet.
Item no. 41000

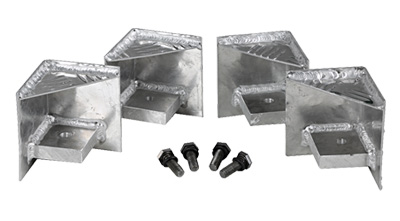

Pallet feet for Extreme-series
4 pallet feet height 100 mm incl. fittings
Item no. 41010
Tool tray for Extreme 883
2 wooden trays and a partition incl. fittings.
Item no. 41012
| Type | Item no. | Internal dimensions in mm L x W x H | External dimensions in mm L x W x H | Contents litres | Weight kg | Handles | References Typ |
| EXTREME 37 | 41037 | 600 x 250 x 250 | 622 x 275 x 270 | 37 | 6,7 | 2 | R 37 |
| EXTREME 46 | 4106 | 800 x 300 x 190 | 822 x 325 x 210 | 46 | 9 | 2 | R 46 |
| EXTREME 70 | 41070 | 500 x 350 x 400 | 522 x 375 x 420 | 70 | 8,6 | 2 | R 70 |
| EXTREME 120 | 41120 | 600 x 400 x 500 | 622 x 425 x 520 | 120 | 11,7 | 2 | R 120 |
| EXTREME 234 | 41234 | 750 x 500 x 625 | 772 x 525 x 645 | 234 | 17,6 | 4 | R 234 |
| EXTREME 250 | 41250 | 1000 x 500 x 500 | 1022 x 525 x 520 | 250 | 19,3 | 4 | R 250 |
| EXTREME 312 | 41312 | 1250 x 500 x 500 | 1272 x 525 x 520 | 312 | 22,7 | 4 | R 312 |
| EXTREME 375 | 41375 | 1500 x 500 x 500 | 1522 x 525 x 520 | 375 | 26,7 | 4 | R 375 |
| EXTREME 883 | 41883 | 1678 x 675 x 730/830 | 1700 x 700 x 750/850 | 883 | 47,4 | 4 | R 883 |
Clearance dimensions approx. 50 mm less than interior dimensions. Subject to technical and visual changes.
We are a highly capable expert in this field thanks to many years of experience in the design, production and sale of high-quality aluminium boxes, transport boxes and other transport containers and stackable containers.
We supply the specialist trade, the wholesale trade, market chains and the mail order business with our aluminium boxes, transport boxes, treadplate boxes and other products such as boxes for truck flatbeds, and flagpoles made of aluminium. Our aluminium boxes and transport boxes are highly versatile and make a convincing impression through their top quality, long life and trouble-free handling.
Each stackable container, each aluminium box and each transport box made of aluminium is assembled by hand and given a final check so that our customers can be sure that they will receive a high-quality product. In addition to our standardized transport boxes and aluminium boxes, etc., we can also produce special customized versions to meet customer requirements, if the order is large enough.
